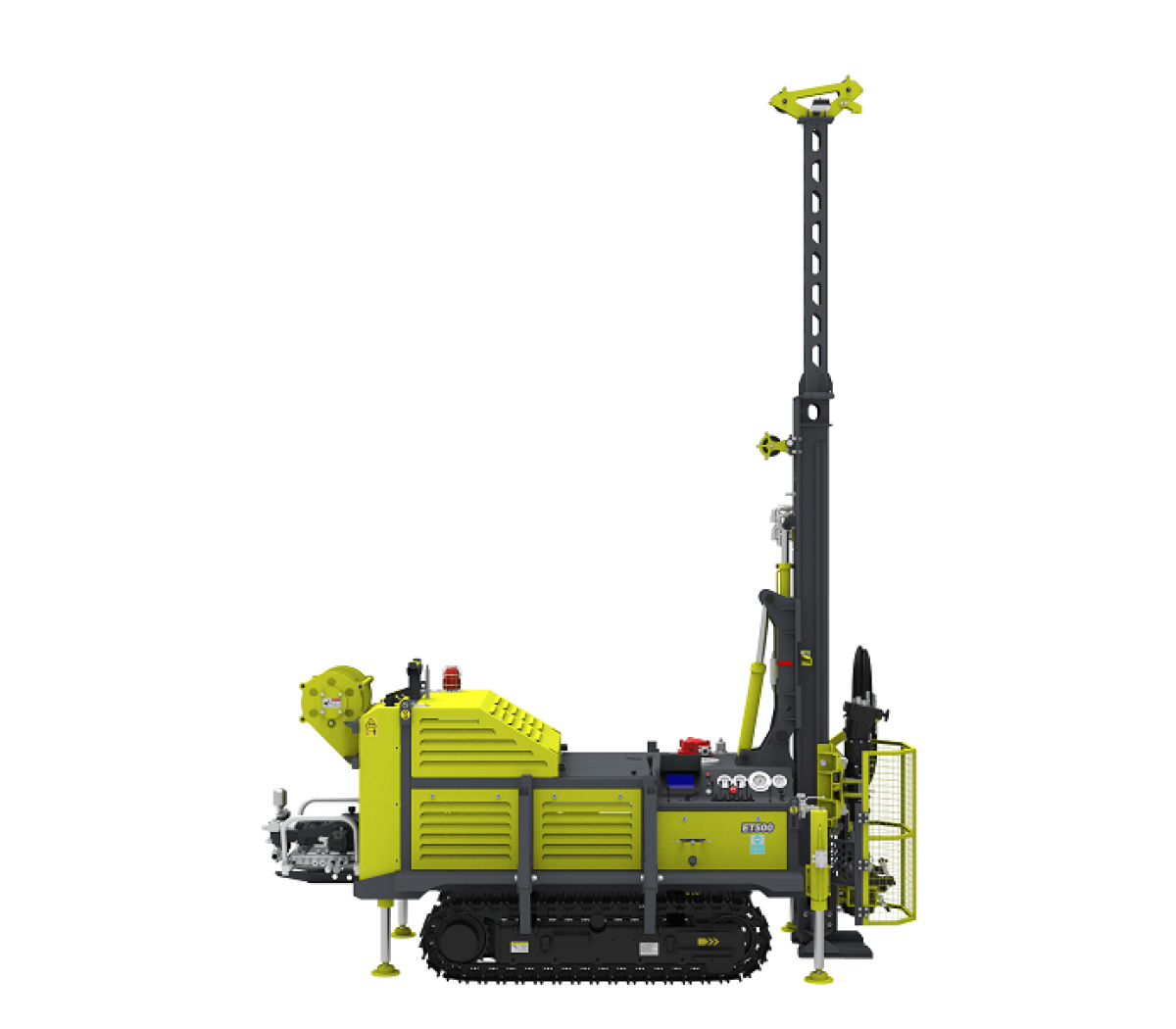

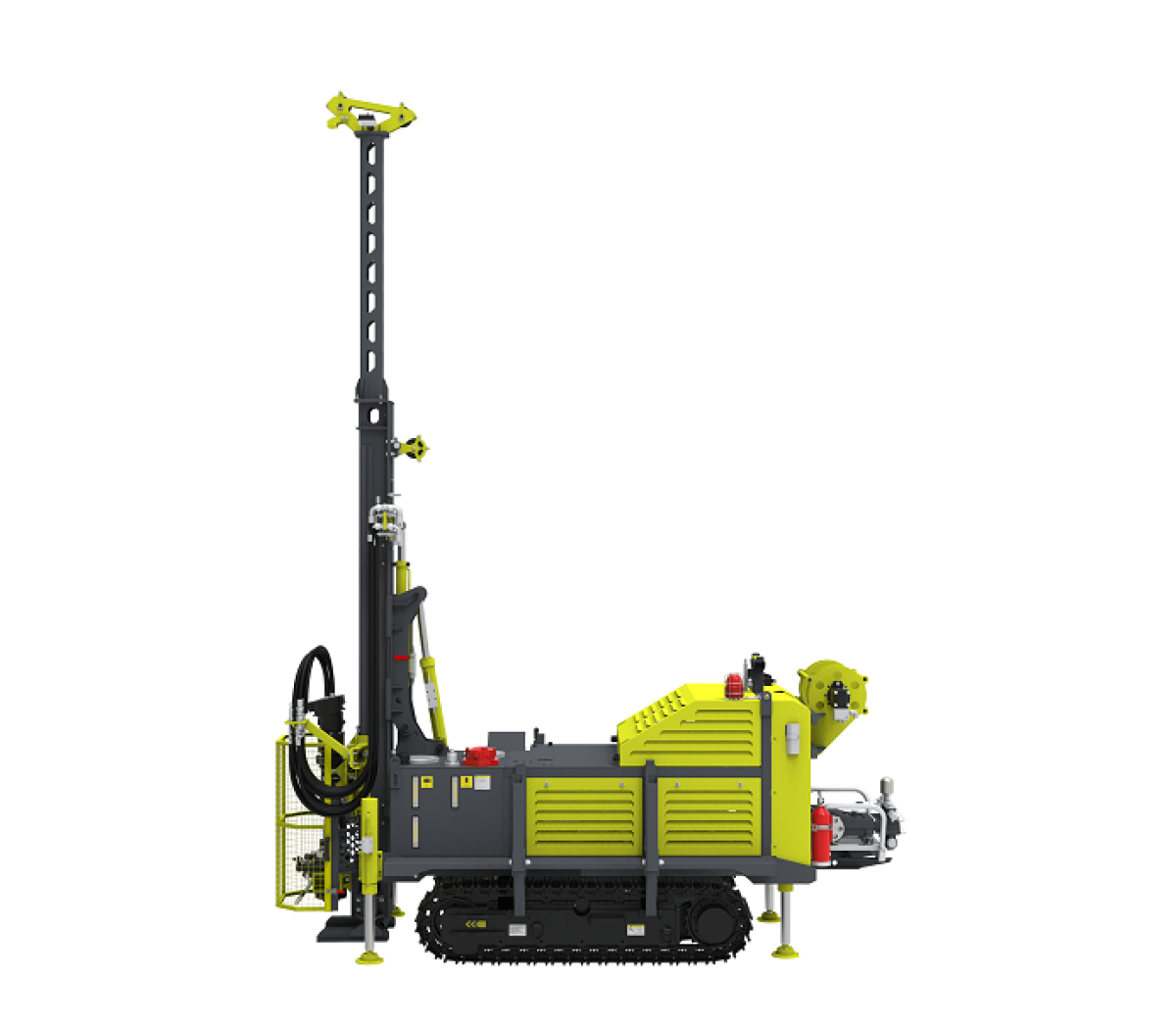

DET500 Integrated Core Drilling Rig for Geological Exploration

Hole Depth: 600m, 500m, 200m, 100m

Hole Diameter: 60mm, 76mm, 96mm, 123mm

Coring Method: Wireline Diamond Coring

Application of DET500:

Transportation engineering investigations such as highways, railways,subways, and tunnels: Construction engineering investigations for high-rise buildings, bridges, and other structures; Hydroelectric power investigations, geological disaster assessments, environmental geology surveys, urban underground space exploration, and geological scientific research,among many other fields.

Advantages

- Load-Sensitive Hydraulic System
- Downhole Data Acquisition System
- Variable Speed Motor
- Remote Control Crawler

Patented Parts

Fuel Efficient – Variable speed Motor
DET500 Integrated Core Drilling Rig for Geological Exploration

Compact and lightweight, easy speed adjustment, highvolumetric efficiency, can save fuel by over 20%!
Hydraulic Automatic Standard Penetration Tester
Enclosed hammer, safe and reliable, easy operation.

Safe – Hydraulic Sliding Block Clamp

Simple and reliable structure, applies PW (139) diameter casing, mechanical lock to prevent falling off of drill string, especially suitable for deep hole operations.

Lightweight – New Type Lightweight Mud Pump

Compact and lightweight design, capable of pumping low-solids,high-viscosity, circulating drilling fluids, idealfor complex formation mud.

Description

- Variable speed Motor
Adjustable speed and torque continuously.high volumetric efficiency. fuel savings over 20%!
- New Electrical Control System
Data acquisition and remote monitoring while drilling.
- New Lightweight Mud Pump
Compact and lightweight design, capable of circulating mud and high-viscosity drilling fluids.
- Rear-Mounted Winch
Visible operation, easy to control, and convenient maintenance.
- Hydraulic Slide Clamp
Locks securely using the self-weight of the drill string, providing excellent anti-drift performance.
- Crawler
Equipped with a dual-speed track chassis,remote-controlled operation, high maneuverability, maximum speed of 3.3km/h, and maximum gradeability 35°.

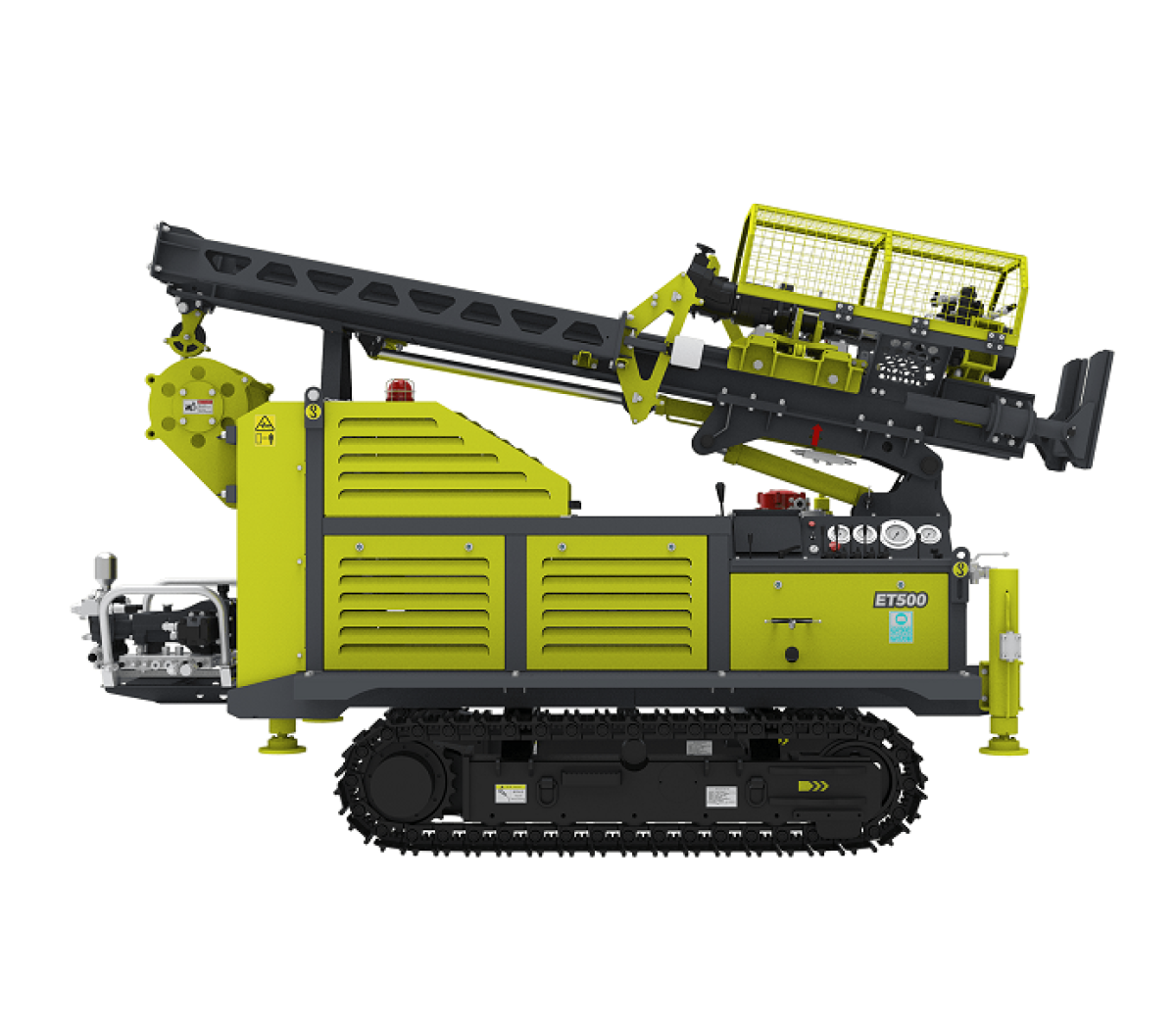

- Foldable Mast
Simple and reliable structure, easy operation.
- Protection Mesh
Protect operators, ensure work safety.
- Load-Sensitive Hydraulic System
Constant power output, extremely low energy consumption.

DET Series - Integrated Core Drilling Rig

DET500 Integrated Core Drilling Rig for Geological Exploration
